HD74ACT138

1-of-8 Decoder/Demultiplexer

HD74ACT138 Features

* Demultiplexing Capability

* Multiple Input Enable for Easy Expansion

* Active LOW Mutually Exclusive Outputs

* Outputs Source/Sink 24 mA

* HD74ACT138 has TTL-Compatible Inputs

* Ordering Information: Ex. HD74AC138 Part Name Package Type Package Co

HD74ACT138 General Description

The HD74AC138/HD74ACT138 is a high-speed 1-of-8 decoder/demultiplexer. This device is ideally suited for highspeed bipolar memory chip select address decoding. The multiple input enables allow parallel expansion to a 1-of-24 decoder using just three HD74AC138/HD74ACT138 devices or a 1-of-32 decoder .

HD74ACT138 Datasheet (132.39 KB)

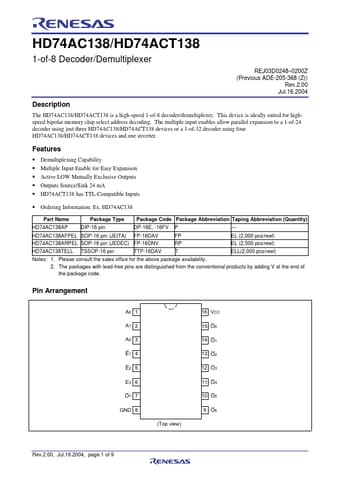

Preview of HD74ACT138 PDF

Datasheet Details

Part number:

HD74ACT138

Manufacturer:

Renesas ↗

File Size:

132.39 KB

Description:

1-of-8 decoder/demultiplexer.
