HD74ACT163

Synchronous Presettable Binary Counter

HD74ACT163 Features

* Synchronous Counting and Loading High-Speed Synchronous Expansion Typical Count Rate of 125 MHz Outputs Source/Sink 24 mA HD74ACT161 and HD74ACT163 have TTL-Compatible Inputs HD74ACT161/HD74ACT163 Pin Arrangement

* R 1 CP 2 P0 3 P1 4 P2 5 P3 6 C

HD74ACT163 General Description

The HD74ACT161 and HD74ACT163 are high-speed synchronous modulo-16 binary counters. They are synchronously presettable for application in programmable dividers and have two types of Count Enable inputs plus a Terminal Count output for versatility in forming synchronous multistage counters. The HD74A.

HD74ACT163 Datasheet (70.41 KB)

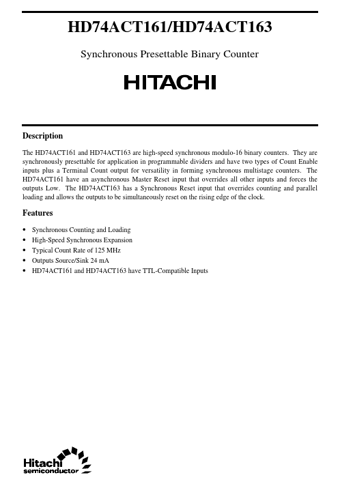

Preview of HD74ACT163 PDF

Datasheet Details

Part number:

HD74ACT163

Manufacturer:

Hitachi Semiconductor

File Size:

70.41 KB

Description:

Synchronous presettable binary counter.
