HD74ACT165

Parallel-Load 8-bit Shift Register

HD74ACT165 Features

* Outputs Source/Sink 24 mA

* HD74ACT165 has TTL-Compatible Inputs HD74AC165/HD74ACT165 Pin Arrangement SL 1 CP 2 E 3 Parallel Inputs F 4 G 5 H 6 QH 7 GND 8 (Top view) 16 VCC Clock 15 Inhibit 14 D 13 C 12 B 11 A 10 SI 9 QH Parallel Inputs Logic Symbol 15 11 12 13 14 3 4 5 6 1 2

HD74ACT165 General Description

This 8-bit serial shift register shifts data from Q A to QH when clocked, Parallel inputs to each stage are enabled by a low level at the Shift/Load Input. Also included is a gated clock input and a complementary output from the eighth bit. Clocking is accomplished through a 2-input NOR gate permitt.

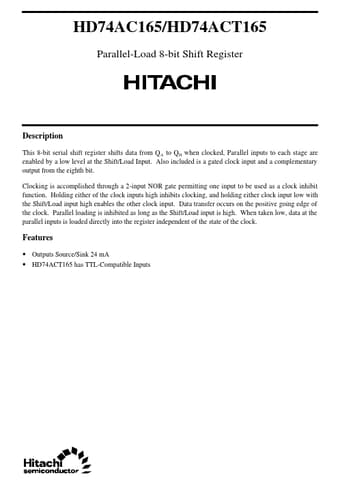

HD74ACT165 Datasheet (69.01 KB)

Preview of HD74ACT165 PDF

Datasheet Details

Part number:

HD74ACT165

Manufacturer:

Hitachi Semiconductor

File Size:

69.01 KB

Description:

Parallel-load 8-bit shift register.
