HD74ACT164

Serial-In/ Parallel-Out Shift Register

HD74ACT164 Features

* an asynchronous Master Reset which clears the register, setting all outputs Low independent of the clock. Features

* Outputs Source/Sink 24 mA

* HD74ACT164 has TTL-Compatible Inputs Pin Arrangement A 1 B 2 Q0 3 Q1 4 Q2 5 Q3 6 GND 7 (Top view) 14 VCC 13 Q7 12 Q6 11 Q5 10 Q4 9 MR 8

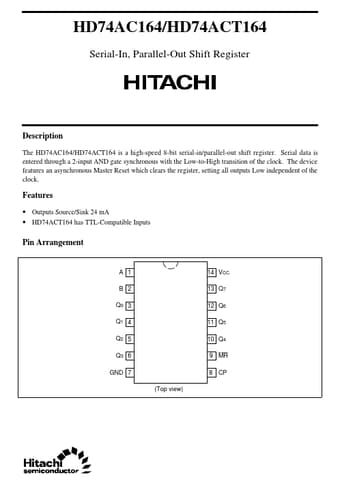

HD74ACT164 Datasheet (59.34 KB)

Preview of HD74ACT164 PDF

Datasheet Details

Part number:

HD74ACT164

Manufacturer:

Hitachi Semiconductor

File Size:

59.34 KB

Description:

Serial-in/ parallel-out shift register.
