HD74ACT283

4-bit Binary Full Adder

HD74ACT283 Features

* Outputs Source/Sink 24 mA

* HD74ACT283 has TTL-Cmpatible Inputs

* Ordering Information: Ex. HD74AC283 Part Name Package Type Package Code Package Abbreviation Taping Abbreviation (Quantity) HD74AC283AP DIP-16 pin DP-16E, -16FV P

* HD74AC283AFPEL SOP-16 pin (J

HD74ACT283 General Description

The HD74AC283/HD74ACT283 high-speed 4-bit binary full adder with internal carry lookahead accepts two 4-bit binary works (A0

* A3, B0

* B3) and a Carry input (C0). It generates the binary Sum outputs (S0

* S3) and the Carry output (C4) from the most significant bit. The HD74A.

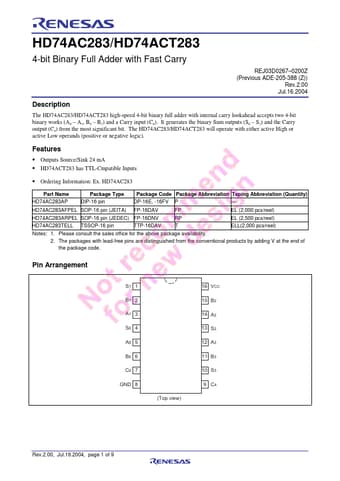

HD74ACT283 Datasheet (223.26 KB)

Preview of HD74ACT283 PDF

Datasheet Details

Part number:

HD74ACT283

Manufacturer:

Renesas ↗

File Size:

223.26 KB

Description:

4-bit binary full adder.
