HD74HC21 - Dual 4-input AND Gates

Datasheet Summary

Features

  • High Speed Operation: tpd = 11 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 1 µA max (Ta = 25°C) Pin Arrangement 1A 1B NC 1C 1D 1Y GND 1 2 3 4 5 6 7 (Top view) 14 VCC 13 2D 12 2C 11 NC 10 2B 9 8 2A 2Y HD74HC21 DC Characteristics Ta = 25°C Item Input voltage Symbol VIH Ta =.
  • 40 to +85°C Max.

📥 Download Datasheet

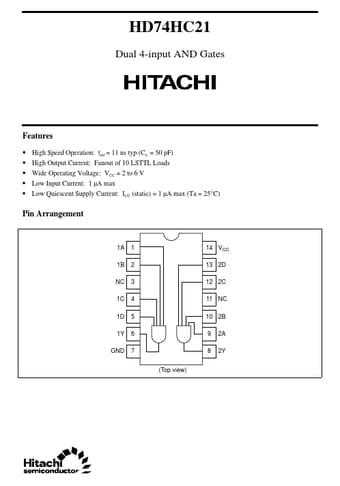

Datasheet preview – HD74HC21

Datasheet Details

Part number HD74HC21
Manufacturer Hitachi Semiconductor
File Size 45.25 KB
Description Dual 4-input AND Gates
Datasheet download datasheet HD74HC21 Datasheet
