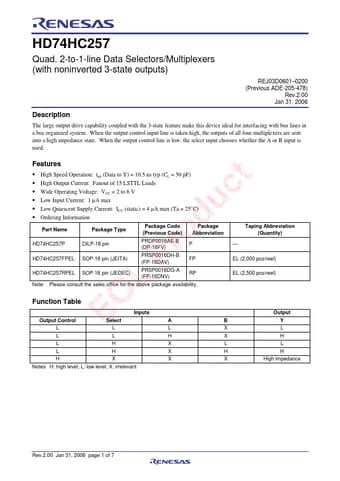

HD74HC257 Datasheet, Selectors/multiplexers, Renesas

HD74HC257 Features

• Selectors/multiplexers
• High Speed Operation: tpd (Data to Y) = 10.5 ns typ (CL = 50 pF)
• High Output Current: Fanout of 15 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V

PDF File Details

Part number:

HD74HC257

Manufacturer:

Renesas ↗

File Size:

222.48kb

Download:

📄 Datasheet

Description:

Quad. 2-to-1-line data selectors/multiplexers. The large output drive capability coupled with the 3-state feature make this device ideal for interfacing with bus lines in a bus org
