HD74HC259

8-bit Addressable Latch

HD74HC259 Features

* High Speed Operation: tpd (Data to Output) = 16 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C) Fu

HD74HC259 General Description

The HD74HC259 has a single data input (D), 8 latch outputs (Q0-Q7), 3 address inputs (A, B, and C), a common enable input (E), and a common clear input. To operate this device as an addressable latch, data is held on the D input, and the address of the latch into which the data is to be entered is h.

HD74HC259 Datasheet (46.09 KB)

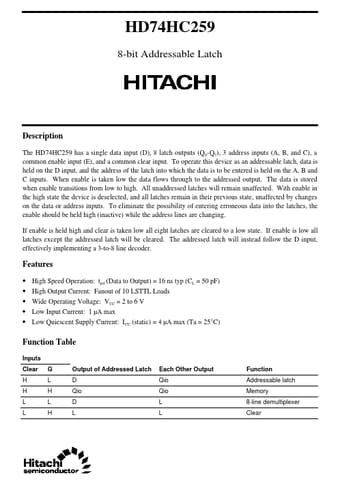

Preview of HD74HC259 PDF

Datasheet Details

Part number:

HD74HC259

Manufacturer:

Hitachi Semiconductor

File Size:

46.09 KB

Description:

8-bit addressable latch.
