HD74HC258 Datasheet, Selectors/multiplexers, Hitachi Semiconductor

HD74HC258 Features

  • Selectors/multiplexers
  • High Speed Operation: tpd (Data to Y) = 11 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VC

PDF File Details

Part number:

HD74HC258

Manufacturer:

Hitachi Semiconductor

File Size:

55.55kb

Download:

📄 Datasheet

Description:

Quad. 2-to-1-line data selectors/multiplexers. The large output drive capability coupled with the 3-state feature make this device ideal for interfacing with bus lines in a bus org

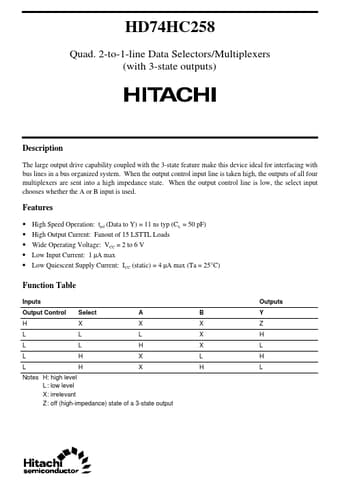

Datasheet Preview: HD74HC258 📥 Download PDF (55.55kb)
