* High Speed Operation: tpd = 11 ns typ (CL = 50 pF)
* High Output Current: Fanout of 15 LSTTL Loads
* Wide Operating Voltage: VCC = 2 to 6 V
* Low Input Current: 1 µA max
* Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)
* Orderin

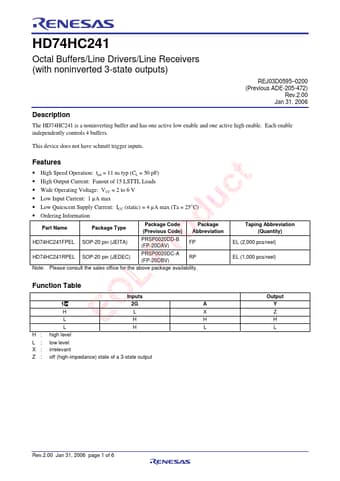

HD74HC241 Datasheet (196.39 KB)
HD74HC241
196.39 KB
Octal buffers/line drivers/line receivers.
HD74HC241
Octal Buffers/Line Drivers/Line Receivers (with noninverted 3-state outputs)
REJ03D0595
*0200 (Previous ADE-205-472)
Rev.2.00 Jan 3.
