HD74HC242, Quad. Bus Transceivers (with 3-state outputs)/Quad. Bus Transceivers (with noninverted 3-state outputs)

HD74HC242/HD74HC243 Quad.Bus Transceivers (with 3-state outputs) Quad.Bus Transceivers (with noninverted 3-state outputs) .
The HD74HC242 is an inverting buffer and the HD74HC243 is a noninverting buffer.

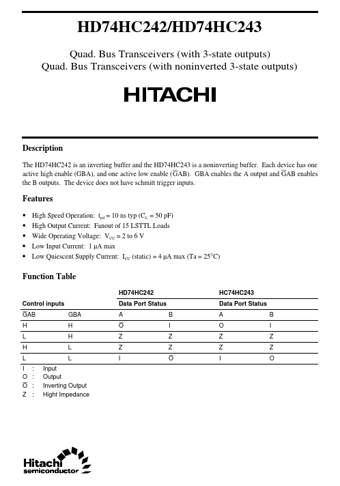

datasheet Preview Page 1 from Datasheet4u.com

HD74HC242_HitachiSemiconductor.pdf

HD74HC242 Datasheet Preview — Preview of HD74HC242 PDF

Datasheet Details

Part number:

HD74HC242

Manufacturer:

Hitachi Semiconductor

File Size:

60.31 KB

Description:

Quad. Bus Transceivers (with 3-state outputs)/Quad. Bus Transceivers (with noninverted 3-state outputs)

Features

* High Speed Operation: tpd = 10 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C) Function Table HD74
