HD74HC243 Datasheet, Outputs), Hitachi Semiconductor

HD74HC243 Features

• Outputs)
• High Speed Operation: tpd = 10 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V

PDF File Details

Part number:

HD74HC243

Manufacturer:

Hitachi Semiconductor

File Size:

60.31kb

Download:

📄 Datasheet

Description:

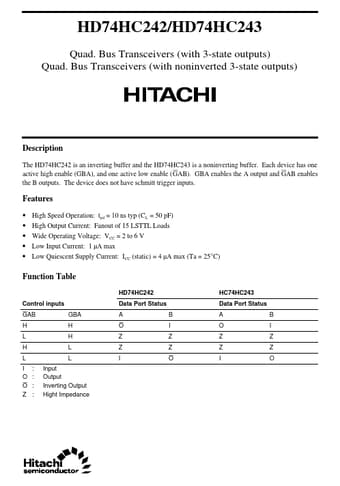

Quad. bus transceivers (with 3-state outputs)/quad. bus transceivers (with noninverted 3-state outputs). The HD74HC242 is an inverting buffer and the HD74HC243 is a noninverting buffer. Each device has one active high enable (GBA), and on
