HD74HC244 Datasheet, Outputs), Hitachi Semiconductor

HD74HC244 Features

  • Outputs)
  • High Speed Operation: tpd = 11 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V

PDF File Details

Part number:

HD74HC244

Manufacturer:

Hitachi Semiconductor

File Size:

61.00kb

Download:

📄 Datasheet

Description:

Octal buffers/line drivers/line receivers(with noninverted 3-state outputs). The HD74HC244 is a non-inverting buffer and has two active low enables (1G and 2G ). Each enable independently controls 4 buffers. Th

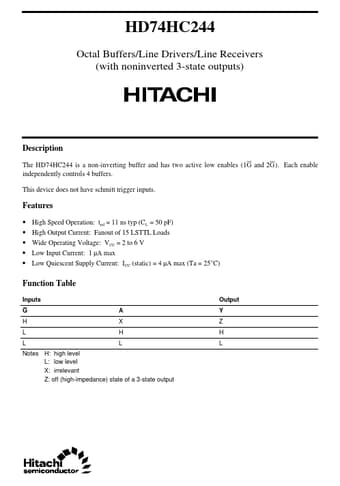

Datasheet Preview: HD74HC244 📥 Download PDF (61.00kb)
