HD74HC241 - Octal Buffers/Line Drivers/Line Receivers(with noninverted 3-state outputs)

Datasheet Summary

Description

The HD74HC241 is a noninverting buffer and has one active low enable and one active high enable.

Each enable independently controls 4 buffers.

This device does not have schmitt trigger inputs.

Features

  • High Speed Operation: tpd = 11 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C) Function Table Inputs 1G H L L H L X Z : : : : 2G L H H high level low level irrelevant off (high-impedance) state of a 3-state output A X H L Output Y Z H L HD74HC241 Pin Arrangement 1G1 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2.

📥 Download Datasheet

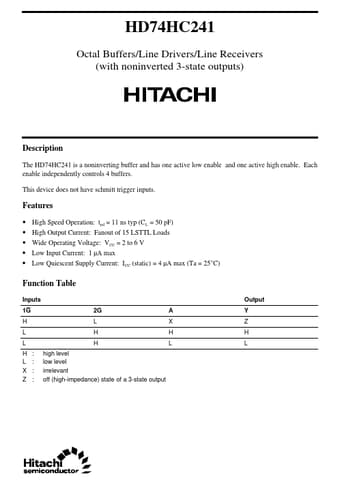

Datasheet preview – HD74HC241

Datasheet Details

Part number HD74HC241
Manufacturer Hitachi Semiconductor
File Size 58.77 KB
Description Octal Buffers/Line Drivers/Line Receivers(with noninverted 3-state outputs)
Datasheet download datasheet HD74HC241 Datasheet
Additional preview pages of the HD74HC241 datasheet.
