HD74HC221 - Dual Monostable Multivibrators (with Schmitt Trigger Input)

Datasheet Summary

Description

Each multivibrator

Features

  • both a negative, A, and a positive, B, transition triggered input, either of which can be used as an inhibit. Also included is a clear inpt that when taken low resets the one shot. The HD74HC221 can be triggered on the positive transition of teh clear while A is held low and B is held high. This device is a non-retriggerable, and therefore cannot be retriggered until the output pulse times out. The output pulse equation is simply: tW = 0.7.
  • (Rext).
  • (Cext) Features.

📥 Download Datasheet

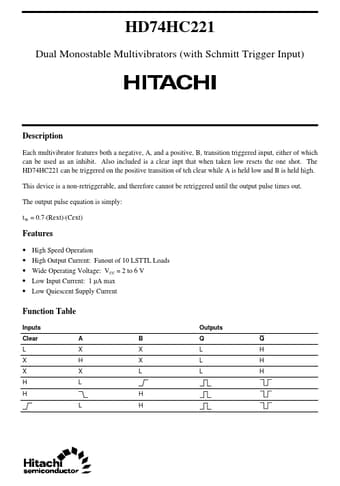

Datasheet preview – HD74HC221

Datasheet Details

Part number HD74HC221
Manufacturer Hitachi Semiconductor
File Size 53.57 KB
Description Dual Monostable Multivibrators (with Schmitt Trigger Input)
Datasheet download datasheet HD74HC221 Datasheet
