HD74HC240

Octal Buffers/Line Drivers/Line Receivers

HD74HC240 Features

* High Speed Operation: tpd = 10 ns typ (CL = 50 pF)

* High Output Current: Fanout of 15 LSTTL Loads

* Wide Operating Voltage: VCC = 2 to 6 V

* Low Input Current: 1 µA max

* Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)

* Orderin

HD74HC240 Datasheet (101.07 KB)

Preview of HD74HC240 PDF

Datasheet Details

Part number:

HD74HC240

Manufacturer:

Renesas ↗

File Size:

101.07 KB

Description:

Octal buffers/line drivers/line receivers.

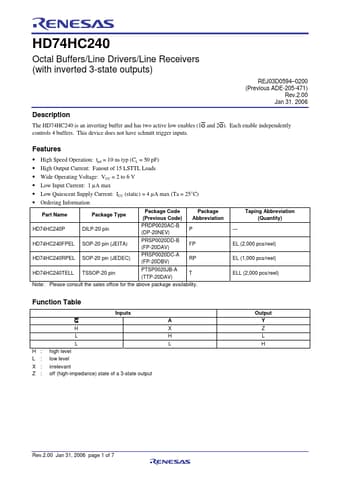

HD74HC240 Octal Buffers/Line Drivers/Line Receivers (with inverted 3-state outputs) REJ03D0594

*0200 (Previous ADE-205-471) Rev.2.00 Jan 31, .
