HN58C65 Datasheet - Hitachi Semiconductor

8192-word X 8-bit Electrically Erasable and Programmable CMOS ROM

HN58C65 Features

* Single 5 V Supply On chip latches: address, data, CE, OE, WE Automatic byte write: 10 ms max Automatic page write (32 byte): 10 ms max Fast access time: 250 ns max Low power dissip

HN58C65 General Description

The Hitachi HN58C65 is a electrically erasable and programmable ROM organized as 8192-word × 8-bit. It realizes high speed, low power consumption, and a high level of reliability, employing advanced MNOS memory technology and CMOS process and circuitry technology. It also has a 32-byte page programm.

HN58C65 Datasheet (152.48 KB)

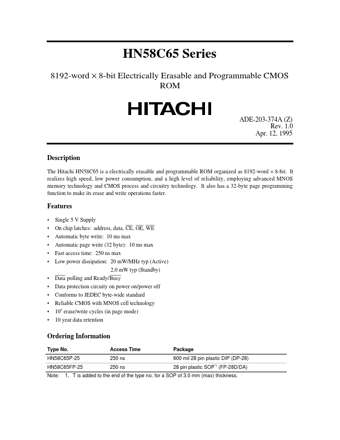

HN58C65 Datasheet Preview — Preview of HN58C65 PDF

Datasheet Details

Part number:

HN58C65

Manufacturer:

Hitachi Semiconductor

File Size:

152.48 KB

Description:

8192-word x 8-bit electrically erasable and programmable cmos rom.
