HN58V66A Datasheet, Function, Hitachi

HN58V66A Features

• Function
• Single supply: 2.7 to 5.5 V
• Access time:  100 ns (max) at 2.7 V ≤ VCC < 4.5 V  70 ns (max) at 4.5 V ≤ VCC ≤ 5.5 V
• Power dissipation:  Active: 20 mW/MHz

PDF File Details

Part number:

HN58V66A

Manufacturer:

Hitachi

File Size:

127.73kb

Download:

📄 Datasheet

Description:

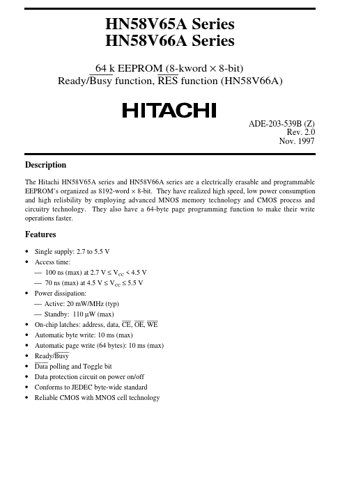

64k eeprom (8-kword x 8-bit) ready/busy function. The Hitachi HN58V65A series and HN58V66A series are a electrically erasable and programmable EEPROM’s organized as 8192-word × 8-bit.
