HN58X2416 - EEPROM

Product Overview

Hitachi Semiconductor

Part number	HN58X2416
Manufacturer	Hitachi Semiconductor
File Size	114.19 KB
Description	EEPROM
Datasheet	HN58X2416 Datasheet
Note	This datasheet PDF includes multiple part numbers: HN58X2416, HN58X2402. Please refer to the document for exact specifications by model.

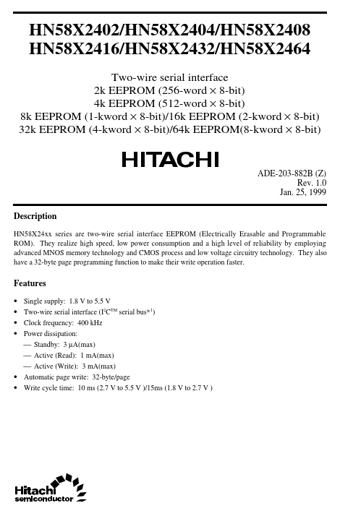

Additional preview pages of the HN58X2416 datasheet.

HN58X24xx series are two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM).

Single supply: 1.8 V to 5.5 V Two-wire serial interface (I2CTM serial bus.
1) Clock frequency: 400 kHz Power dissipation:  Standby: 3 µA(max)  Active (Read): 1 mA(max)  Active (Write): 3 mA(max).
Automatic page write: 32-byte/page.
Write cycle time: 10 ms (2.7 V to 5.5 V )/15ms (1.8 V to 2.7 V ).
HN58X2402/58X2404/58X2408/58X2416/58X2432/58X2464 Features (cont. ).
Endurance: 10 5 Cycles (Page write mode).
Data rete.
