K1317 - 2SK1317

Hitachi Semiconductor

Datasheet Details

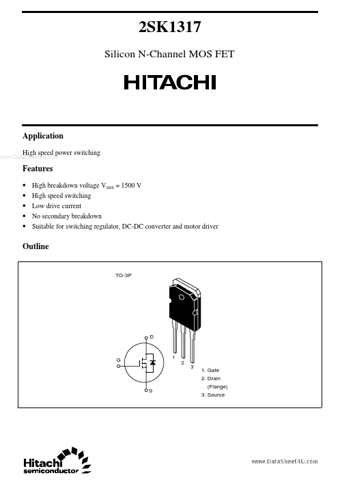

High breakdown voltage V DSS = 1500 V High speed switching Low drive current No secondary breakdown Suitable for switching regulator, DC-DC converter and motor driver Outline TO-3P D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK1317 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature St.
