TBB1004 Twin Build in Biasing Circuit MOS FET IC

TBB1004 Description

TBB1004 Twin Build in Biasing Circuit MOS FET IC VHF/UHF RF Amplifier ADE-208-988H (Z) 9th.Edition Dec.2000 .

TBB1004 Features

* Small SMD package CMPAK-6 built in twin BBFET; To reduce using parts cost & PC board space. Suitable for World Standard Tuner RF amplifier. Very useful for total tuner cost reduction. Withstanding to ESD; Build in ESD absorbing diode. Withstand up to 200V at C

📥 Download Datasheet

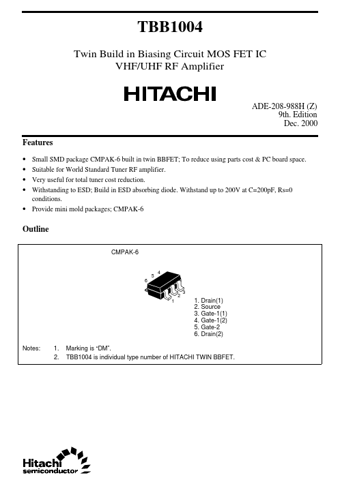

Preview of TBB1004 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TBB1004
Manufacturer
Hitachi Semiconductor
File Size
122.54 KB
Datasheet
TBB1004_HitachiSemiconductor.pdf
Description
Twin Build in Biasing Circuit MOS FET IC
