TBB1010 - Twin Build in Biasing Circuit MOS FET IC VHF/VHF RF Amplifier

Renesas Technology

Datasheet Details

Part number	TBB1010
Manufacturer	Renesas Technology
File Size	155.71 KB
Description	Twin Build in Biasing Circuit MOS FET IC VHF/VHF RF Amplifier
Datasheet	TBB1010_RenesasTechnology.pdf

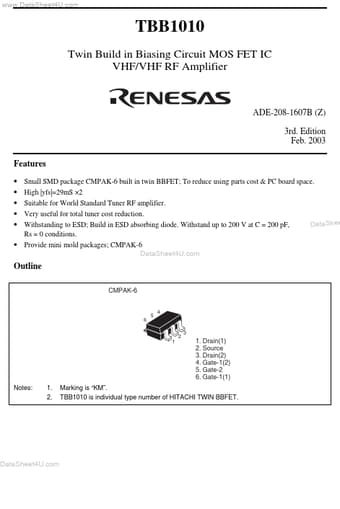

Small SMD package CMPAK-6 built in twin BBFET; To reduce using parts cost & PC board space. High |yfs|=29mS ×2 Suitable for World Standard Tuner RF amplifier. Very useful for total tuner cost reduction. Withstanding to ESD; Build in ESD absorbing diode. Withstand up to 200 V at C = 200 pF, DataShee Rs = 0 conditions.
Provide mini mold packages; CMPAK-6 DataSheet4U. com Outline CMPAK-6 6 5 4 2 1 3 1. Drain(1) 2. Source 3. Drain(2).
