TBB1016 Twin Built in Biasing Circuit MOSFET

TBB1016 Description

TBB1016 Twin Built in Biasing Circuit MOS FET IC VHF/VHF RF Amplifier Preliminary Datasheet R07DS0318EJ0400 Rev.4.00 Jan 10, 2014 .

TBB1016 Features

* Small SMD package CMPAK-6 built in twin BBFET; To reduce using parts cost & PC board space.
* Very useful for total tuner cost reduction.
* Suitable for World Standard Tuner RF amplifier.
* High gain; PG = 32 dB at 200 MHz
* Low noise; NF = 1.0 dB at 200 MHz

📥 Download Datasheet

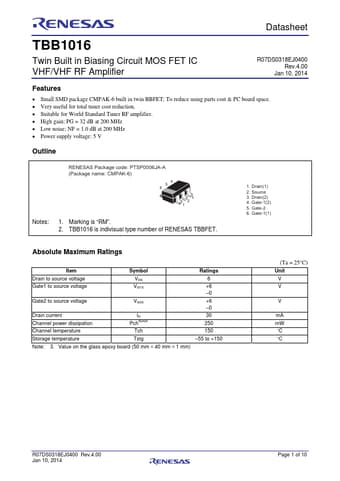

Preview of TBB1016 PDF
datasheet Preview Page 2 datasheet Preview Page 3
