HD66205 - Dot Matrix Liquid Crystal Graphic Display Common Driver

Description

The HD66205F/HD66205FL/HD66205TF/HD 66205TFL/HD66205T/HD66205TL, the row LCD driver,

Features

  • low output impedance and as many as 80 LCD outputs powered by 80 internal LCD drive circuits, and can drive a large liquid crystal graphic display. Because this device is fabricated by the CMOS process, it is suitable for batterydriven portable equipment, which fully utilizes the low power dissipation of liquid crystal elements. The HD66205 has a complete line-up: the HD66205F, a standard device powered by 5 V ± 10%; the HD66205FL, a 2.7 to 5.5 V, low power dissipation device; the HD66205TF and.

📥 Download Datasheet

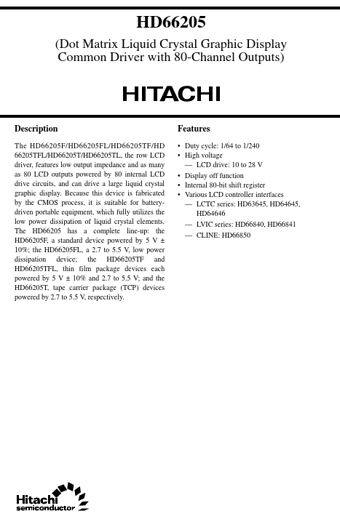

Datasheet preview – HD66205

Datasheet Details

Part number HD66205
Manufacturer Hitachi
File Size 79.04 KB
Description Dot Matrix Liquid Crystal Graphic Display Common Driver
