HMC-VVD104 Datasheet, Attenuator, Hittite Microwave Corporation

HMC-VVD104 Features

  • Attenuator Low Insertion Loss: 2 dB Wide Dynamic Range: 14 dB Balanced Topology Flexible Biasing Single Control Voltage: -5V to +5V Die Size: 1.99 x 1.845 x 0.1 mm Typical Applications www.datash

PDF File Details

Part number:

HMC-VVD104

Manufacturer:

Hittite Microwave Corporation

File Size:

122.69kb

Download:

📄 Datasheet

Description:

Gaas pin mmic voltage-variable attenuator. The HMC-VVD104 is a monolithic GaAs PIN diode based Voltage Variable Attenuator (VVA) which exhibits low insertion loss, high IP3, an

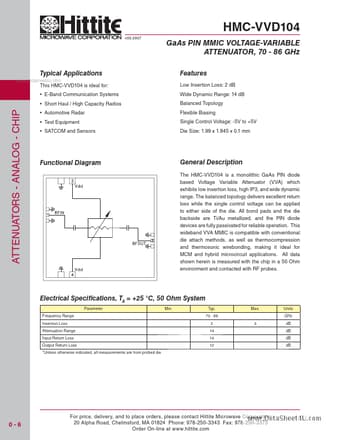

Datasheet Preview: HMC-VVD104 📥 Download PDF (122.69kb)
Page 2 of HMC-VVD104 Page 3 of HMC-VVD104

HMC-VVD104 Application

  • Applications www.datasheet4u.com This HMC-VVD104 is ideal for:
  • E-Band Communication Systems
  • Short Haul / High Capacity Radios
