HMCAD1040-40 Datasheet, Converter, Hittite

HMCAD1040-40 Features

  • Converter
  • 10-bit Resolution
  • 20/40 MSPS Maximum Sampling Rate
  • Ultra-Low Power Dissipation: 24/43 mW
  • 61.6 dB SNR @ 8 MHz
  • Internal Reference Ci

PDF File Details

Part number:

HMCAD1040-40

Manufacturer:

Hittite

File Size:

626.97kb

Download:

📄 Datasheet

Description:

Dual 10-bit 20/40 msps a/d converter. The HMCAD1040-40 is a high performance low power dual analog-to-digital converter (ADC). The ADC employs internal reference circuitry

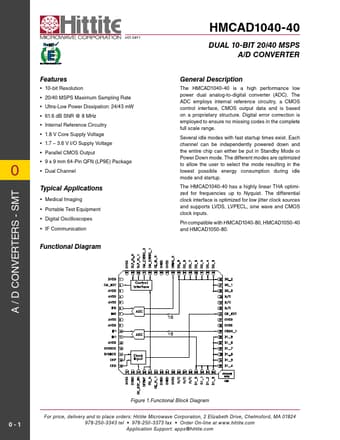

Datasheet Preview: HMCAD1040-40 📥 Download PDF (626.97kb)
Page 2 of HMCAD1040-40 Page 3 of HMCAD1040-40

HMCAD1040-40 Application

  • Applications
  • Medical Imaging
  • Portable Test Equipment
  • Digital Oscilloscopes
  • IF Communication Pin compati
