HMC-ALH140 Datasheet, Amplifier, Analog Devices

HMC-ALH140 Features

  • Amplifier Noise Figure: 4 dB Gain: 11.5 dB P1dB Output Power: +15 dBm Supply Voltage: +4V @ 60 mA Die Size: 2.5 x 1.4 x 0.1 mm General Description The HMC-ALH140 is a two Stage GaAs MMIC HEMT Low

PDF File Details

Part number:

HMC-ALH140

Manufacturer:

Analog Devices ↗

File Size:

263.47kb

Download:

📄 Datasheet

Description:

Gaas hemt mmic low noise amplifier. The HMC-ALH140 is a two Stage GaAs MMIC HEMT Low Noise Amplifier die which operates between 24 and 40 GHz. The amplifier provides 11.

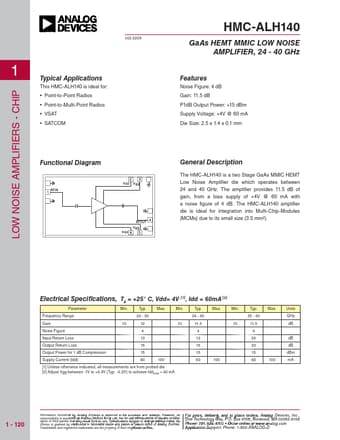

Datasheet Preview: HMC-ALH140 📥 Download PDF (263.47kb)
Page 2 of HMC-ALH140 Page 3 of HMC-ALH140

HMC-ALH140 Application

  • Applications This HMC-ALH140 is ideal for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Radios
  • VSAT
  • SATCOM Fun
