HMC-ALH310 Datasheet, Amplifier, Analog Devices

HMC-ALH310 Features

  • Amplifier Noise Figure: 3.5 dB P1dB: +12 dBm Gain: 22 dB Supply Voltage: +2.5V 50 Ohm Matched Input/Output Die Size: 1.80 x 0.73 x 0.1 mm General Description The HMC-ALH310 is a three stage GaAs

PDF File Details

Part number:

HMC-ALH310

Manufacturer:

Analog Devices ↗

File Size:

234.62kb

Download:

📄 Datasheet

Description:

Gaas hemt mmic low noise amplifier. The HMC-ALH310 is a three stage GaAs HEMT MMIC Low Noise Amplifier (LNA) which operates between 37 and 42 GHz. The HMC-ALH310 feature

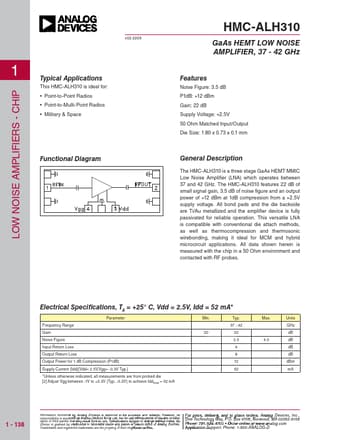

Datasheet Preview: HMC-ALH310 📥 Download PDF (234.62kb)
Page 2 of HMC-ALH310 Page 3 of HMC-ALH310

HMC-ALH310 Application

  • Applications This HMC-ALH310 is ideal for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Radios
  • Military & Space Function
