HMC-ALH376 - GaAs HEMT MMIC LOW-NOISE AMPLIFIER

Product Overview

Analog Devices

Datasheet Details

Part number	HMC-ALH376
Manufacturer	Analog Devices
File Size	254.41 KB
Description	GaAs HEMT MMIC LOW-NOISE AMPLIFIER
Datasheet	HMC-ALH376 Datasheet

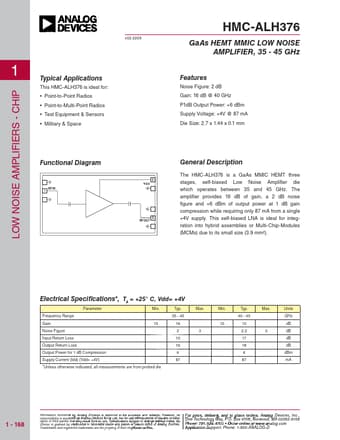

Additional preview pages of the HMC-ALH376 datasheet.

Product details

Description

The HMC-ALH376 is a GaAs MMIC HEMT three stages, self-biased Low Noise Amplifier die which operates between 35 and 45 GHz. , TA = +25° C, Vdd= +4V Parameter Min.Typ.Freq

Features

Noise Figure: 2 dB Gain: 16 dB @ 40 GHz P1dB Output Power: +6 dBm Supply Voltage: +4V @ 87 mA Die Size: 2.7 x 1.44 x 0.1 mm General.
