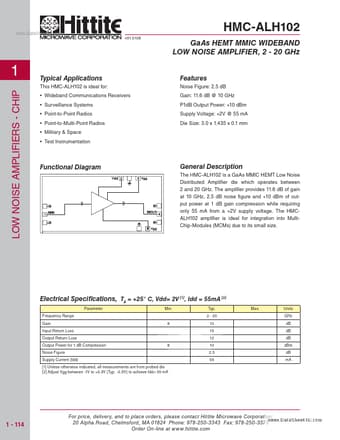

HMC-ALH102 Datasheet, Amplifier, Hittite Microwave Corporation

HMC-ALH102 Features

• Amplifier Noise Figure: 2.5 dB Gain: 11.6 dB @ 10 GHz P1dB Output Power: +10 dBm Supply Voltage: +2V @ 55 mA Die Size: 3.0 x 1.435 x 0.1 mm Functional Diagram General Description The HMC-ALH102

PDF File Details

Part number:

HMC-ALH102

Manufacturer:

Hittite Microwave Corporation

File Size:

214.45kb

Download:

📄 Datasheet

Description:

Gaas hemt mmic wideband low noise amplifier. The HMC-ALH102 is a GaAs MMIC HEMT Low Noise Distributed Amplifier die which operates between 2 and 20 GHz. The amplifier provides 11

HMC-ALH102 Application

• Applications This HMC-ALH102 is ideal for:
• Wideband Communications Receivers
• Surveillance Systems
• Point-to-Point Radio
