HMC-ALH382 Datasheet, Amplifier, Hittite Microwave Corporation

HMC-ALH382 Features

  • Amplifier Noise Figure: 3.8 dB P1dB: +12 dBm Gain: 21 dB Supply Voltage: +2.5V 50 Ohm Matched Input/Output Die Size: 1.55 x 0.73 x 0.1 mm 1 LOW NOISE AMPLIFIERS - CHIP Typical Applications This

PDF File Details

Part number:

HMC-ALH382

Manufacturer:

Hittite Microwave Corporation

File Size:

208.50kb

Download:

📄 Datasheet

Description:

Gaas hemt low noise amplifier. The HMC-ALH382 is a high dynamic range, four stage GaAs HEMT MMIC Low Noise Amplifier (LNA) which operates between 57 and 65 GHz. The

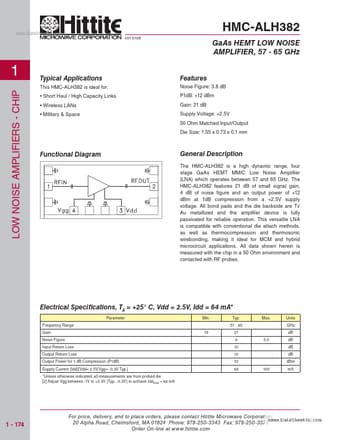

Datasheet Preview: HMC-ALH382 📥 Download PDF (208.50kb)
Page 2 of HMC-ALH382 Page 3 of HMC-ALH382

HMC-ALH382 Application

  • Applications This HMC-ALH382 is ideal for:
  • Short Haul / High Capacity Links
  • Wireless LANs
  • Military & Space Functional
