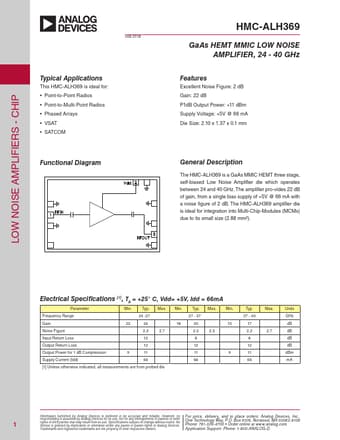

HMC-ALH369 Datasheet, Amplifier, Analog Devices

HMC-ALH369 Features

• Amplifier Excellent Noise Figure: 2 dB Gain: 22 dB P1dB Output Power: +11 dBm Supply Voltage: +5V @ 66 mA Die Size: 2.10 x 1.37 x 0.1 mm General Description The HMC-ALH369 is a GaAs MMIC HEMT thr

PDF File Details

Part number:

HMC-ALH369

Manufacturer:

Analog Devices ↗

File Size:

483.10kb

Download:

📄 Datasheet

Description:

Gaas hemt mmic low-noise amplifier. The HMC-ALH369 is a GaAs MMIC HEMT three stage, self-biased Low Noise Amplifier die which operates between 24 and 40 GHz. The amplifi

HMC-ALH369 Application

• Applications This HMC-ALH369 is ideal for:
• Point-to-Point Radios
• Point-to-Multi-Point Radios
• Phased Arrays
• V
