HMC-ALH311 Datasheet, Amplifier, Analog Devices

HMC-ALH311 Features

  • Amplifier P1dB Output Power: +12 dBm Gain: 25 dB Noise Figure: 3 dB @ 25 GHz Supply Voltage: +2.5V @ 52 mA Die Size: 1.80 x 0.73 x 0.1 mm LOW NOISE AMPLIFIERS - CHIP Functional Diagram General

PDF File Details

Part number:

HMC-ALH311

Manufacturer:

Analog Devices ↗

File Size:

235.40kb

Download:

📄 Datasheet

Description:

Gaas hemt mmic low noise driver amplifier. The HMC-ALH311 is a GaAs MMIC HEMT Low Noise Driver Amplifier die which operates between 22 and 26.5 GHz. The amplifier provides 25 d

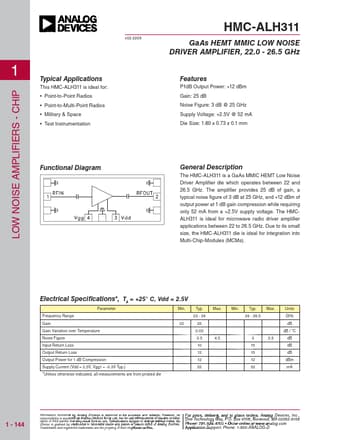

Datasheet Preview: HMC-ALH311 📥 Download PDF (235.40kb)
Page 2 of HMC-ALH311 Page 3 of HMC-ALH311

HMC-ALH311 Application

  • Applications This HMC-ALH311 is ideal for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Radios
  • Military & Space
