HMC-ALH364 Datasheet, Amplifier, Analog Devices

HMC-ALH364 Features

  • Amplifier Excellent Noise Figure: 2 dB Gain: 21 dB P1dB Output Power: +7 dBm Supply Voltage: +5V @ 68 mA Die Size: 1.49 x 0.73 x 0.1 mm LOW NOISE AMPLIFIERS - CHIP Functional Diagram General D

PDF File Details

Part number:

HMC-ALH364

Manufacturer:

Analog Devices ↗

File Size:

222.79kb

Download:

📄 Datasheet

Description:

Gaas hemt mmic low noise amplifier. The HMC-ALH364 is a GaAs MMIC HEMT three stage, self-biased Low Noise Amplifier die which operates between 24 and 32 GHz. The amplifi

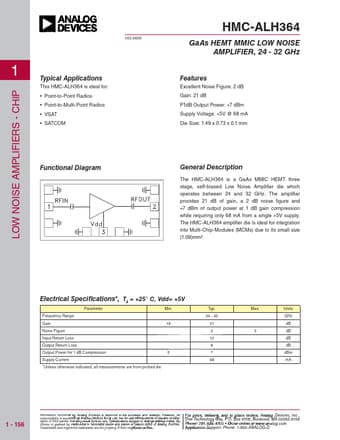

Datasheet Preview: HMC-ALH364 📥 Download PDF (222.79kb)
Page 2 of HMC-ALH364 Page 3 of HMC-ALH364

HMC-ALH364 Application

  • Applications This HMC-ALH364 is ideal for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Radios
  • VSAT
  • SATCOM HM

TAGS

HMC-ALH364
GaAs
HEMT
MMIC
LOW
NOISE
AMPLIFIER
Analog Devices
