HMC-ALH216 Datasheet, Amplifier, Analog Devices

HMC-ALH216 Features

  • Amplifier Noise Figure: 2.5 dB @ 20 GHz Gain: 18 dB P1dB Output Power: +14 dBm Supply Voltage: +4V @ 90 mA Die Size: 2.25 x 1.58 x 0.1 mm Functional Diagram General Description The HMC-ALH216 i

PDF File Details

Part number:

HMC-ALH216

Manufacturer:

Analog Devices ↗

File Size:

237.93kb

Download:

📄 Datasheet

Description:

Gaas hemt mmic low noise amplifier. The HMC-ALH216 is a GaAs MMIC HEMT Wideband Low Noise Amplifier die which operates between 14 and 27 GHz. The amplifier provides 18 d

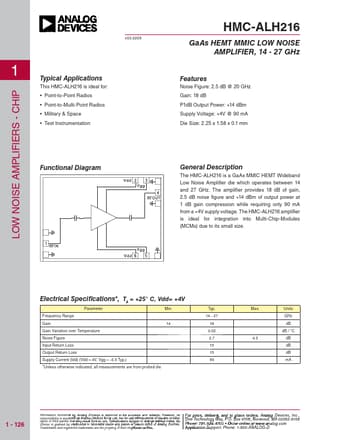

Datasheet Preview: HMC-ALH216 📥 Download PDF (237.93kb)
Page 2 of HMC-ALH216 Page 3 of HMC-ALH216

HMC-ALH216 Application

  • Applications This HMC-ALH216 is ideal for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Radios
  • Military & Space
