HMC-ABH241 - GaAs HEMT MMIC MEDIUM POWER Amplifier

Datasheet Summary

Description

The HMC-ABH241 is a four stage GaAs HEMT MMIC Medium Power Amplifier which operates between 50 and 66 GHz.

The HMC-ABH241 provides 24 dB of gain, and an output power of +17 dBm at 1dB compression from a +5V supply voltage.

Features

  • Output IP3: +25 dBm P1dB: +17 dBm Gain: 24 dB Supply Voltage: +5V 50 Ohm Matched Input/Output Die Size: 3.2 x 1.42 x 0.1 mm Functional Diagram General.

📥 Download Datasheet

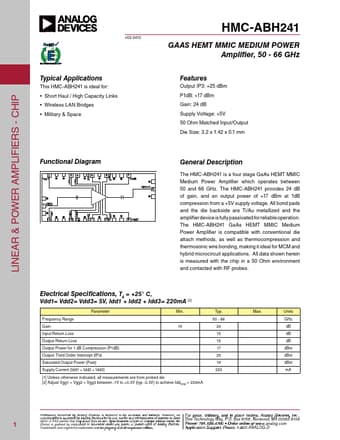

Datasheet preview – HMC-ABH241

Datasheet Details

Part number HMC-ABH241
Manufacturer Analog Devices
File Size 380.87 KB
Description GaAs HEMT MMIC MEDIUM POWER Amplifier
Datasheet download datasheet HMC-ABH241 Datasheet
Additional preview pages of the HMC-ABH241 datasheet.

📁 Similar Datasheet

  • HMC-ALH102 - GaAs HEMT MMIC WIDEBAND LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH244 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH313 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH369 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH376 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH382 - GaAs HEMT LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH444 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH445 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH508 - Low Noise Amplifier Chip (Hittite Microwave Corporation)
  • HMC-ALH509 - GaAs HEMT LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
Other Datasheets by Analog Devices
  • HMC-ABH209 - GaAs HEMT MMIC MEDIUM POWER AMPLIFIER
  • HMC-ABH264 - GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER
  • HMC-ALH102 - GaAs HEMT MMIC WIDEBAND LOW-NOISE AMPLIFIER
  • HMC-ALH140 - GaAs HEMT MMIC LOW NOISE AMPLIFIER
  • HMC-ALH216 - GaAs HEMT MMIC LOW NOISE AMPLIFIER
  • HMC-ALH244 - GaAs HEMT MMIC LOW-NOISE AMPLIFIER
  • HMC-ALH310 - GaAs HEMT MMIC LOW NOISE AMPLIFIER
  • HMC-ALH311 - GaAs HEMT MMIC LOW NOISE DRIVER AMPLIFIER

Full PDF Text Transcription

Click to expand full text
Linear & Power Amplifiers - CHIP v03.0412 Typical Applications This HMC-ABH241 is ideal for: • Short Haul / High Capacity Links • Wireless LAN Bridges • Military & Space HMC-ABH241 GaAs HEMT MMIC MEDIUM POWER Amplifier, 50 - 66 GHz Features Output IP3: +25 dBm P1dB: +17 dBm Gain: 24 dB Supply Voltage: +5V 50 Ohm Matched Input/Output Die Size: 3.2 x 1.42 x 0.1 mm Functional Diagram General Description The HMC-ABH241 is a four stage GaAs HEMT MMIC Medium Power Amplifier which operates between 50 and 66 GHz. The HMC-ABH241 provides 24 dB of gain, and an output power of +17 dBm at 1dB compression from a +5V supply voltage. All bond pads and the die backside are Ti/Au metallized and the amplifier device is fully passivated for reliable operation.
