HMC-ABH264 Datasheet, Amplifier, Analog Devices

HMC-ABH264 Features

  • Amplifier High Output IP3: 29 dBm High P1dB: 18 dBm High Gain: 18.5 dB Bias Supply: +5V 50 Ohm Matched Input/Output Die Size: 2.4 x 1.64 x 0.1 mm Amplifiers - Linear & Power - Chip Functional D

PDF File Details

Part number:

HMC-ABH264

Manufacturer:

Analog Devices ↗

File Size:

334.41kb

Download:

📄 Datasheet

Description:

Gaas phemt mmic medium power amplifier. The HMC-ABH264 is a high dynamic range GaAs PHEMT MMIC Medium Power Amplifier which operates between 34 and 42 GHz. The HMC-ABH264 pr

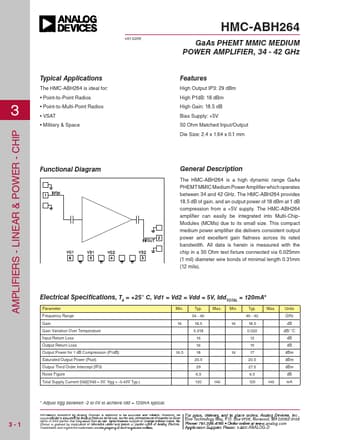

Datasheet Preview: HMC-ABH264 📥 Download PDF (334.41kb)
Page 2 of HMC-ABH264 Page 3 of HMC-ABH264

HMC-ABH264 Application

  • Applications The HMC-ABH264 is ideal for:
  • Point-to-Point Radios 3
  • Point-to-Multi-Point Radios
  • VSAT
  • Military

TAGS

HMC-ABH264
GaAs
PHEMT
MMIC
MEDIUM
POWER
AMPLIFIER
Analog Devices
