HI-8200

Quad 10-Ohm +/-12V outside-the-rails Analog Switch

HI-8200 Features

* CMOS analog switches with up to +/-12V switching range from a single 3.3V or 5V supply

* Low RON: 10W max at 25°C

* Robust CMOS Silicon-on-Insulator (SOI) technology

* Switch nodes are open-circuit when chip is powered down

* SOI switch isolation with 1nA typical Off leakage

HI-8200 General Description

The HI-8200 is a quad analog CMOS switch fabricated with Silicon-on-Insulator (SOI) technology for latch-up free operation and maximum switch isolation. High voltage gate drive is entirely created on-chip enabling +/-12V switching range from a single 3.3V or 5V supply. These switches are ideally sui.

HI-8200 Datasheet (133.93 KB)

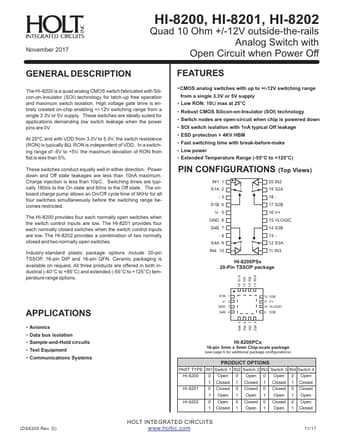

Preview of HI-8200 PDF

Datasheet Details

Part number:

HI-8200

Manufacturer:

Holt Integrated Circuits

File Size:

133.93 KB

Description:

Quad 10-ohm +/-12v outside-the-rails analog switch.
