HI-8281 Datasheet - Holt Integrated Circuits

HI-8281 ARINC 429 LINE DRIVER AND DUAL RECEICER

The HI-8281 device from Holt Integrated Circuits is a silicon gate CMOS device for interfacing a 16-bit parallel data bus directly to the ARINC 429 serial bus. The device provides two receivers, an independent transmitter and line driver capability in a single package. The receiver input circuitry a.

HI-8281 Features

* ! ARINC specification 429 compatible ! Direct receiver and transmitter interface to ARINC bus in a single device. ! 16-Bit parallel data bus. ! Timing control 10 times the data rate ! Selectable data clocks ! Receiver error rejection per ARINC specification 429 ! Automatic transmitter data timing !

HI-8281_HoltIntegratedCircuits.pdf

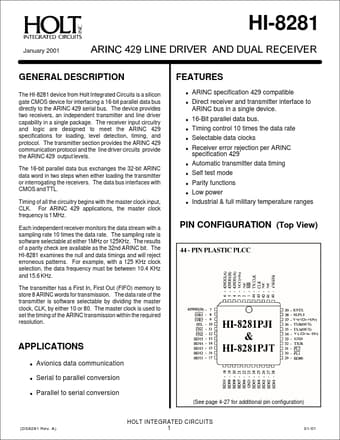

Preview of HI-8281 PDF
HI-8281 Datasheet Preview Page 2 HI-8281 Datasheet Preview Page 3

Datasheet Details

Part number:

HI-8281

Manufacturer:

Holt Integrated Circuits

File Size:

302.27 KB

Description:

Arinc 429 line driver and dual receicer.
