HI-8282A, HI8, ARINC 429 SERIAL TRANSMITTER AND DUAL RECEIVER

HI-8282A May 2001 ARINC 429 SERIAL TRANSMITTER AND DUAL RECEIVER .

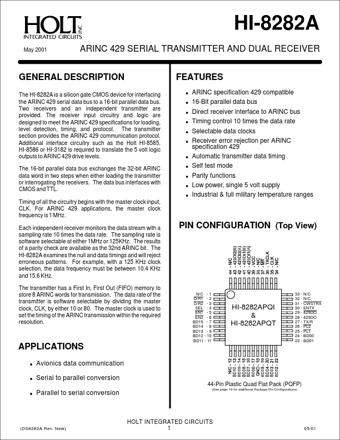

The HI-8282A is a silicon gate CMOS device for interfacing the ARINC 429 serial data bus to a 16-bit parallel data bus.

datasheet Preview Page 1 from Datasheet4u.com

HI8-282.pdf

HI-8282A Datasheet Preview — This datasheet PDF includes multiple part numbers: HI-8282A, HI8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HI-8282A, HI8

Manufacturer:

Holt Integrated Circuits

File Size:

688.61 KB

Description:

ARINC 429 SERIAL TRANSMITTER AND DUAL RECEIVER

Note:

This datasheet PDF includes multiple part numbers: HI-8282A, HI8.
Please refer to the document for exact specifications by model.

Features

* ! ARINC specification 429 compatible ! 16-Bit parallel data bus ! Direct receiver interface to ARINC bus ! Timing control 10 times the data rate ! Selectable data clocks ! Receiver error rejection per ARINC specification 429 ! Automatic transmitter data timing ! Self test mode ! Parity functions ! L

Applications

* the master clock frequency is 1 MHz. Each independent receiver monitors the data stream with a sampling rate 10 times the data rate. The sampling rate is software selectable at either 1MHz or 125KHz. The results of a parity check are available as the 32nd ARINC bit. The HI-8282A examines the null a
