HI-8783

(HI-8783 - HI-8785) 8 bit parallel data converted to 429 & 561 serial data out

HI-8783 Features

* l l l l l VCC 561 SYNC D0 D1 D2 D3 D4 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 V+ 561 DATA TXBOUT TXAOUT VPARITY ENB XMT READY XMIT CLK RESET WRITE SLP1.5 A0 Automatically converts 8 bit parallel data to ARINC 429 or 561 serial data High speed data bus interface On-chip line driver option SOIC packa

HI-8783 General Description

The HI-8783, HI-8784, and HI-8785 are system components for interfacing 8 bit parallel data to an ARINC 429 bus. The HI-8783 is a logic device only and requires a separate line driver circuit, such as the HI-3182 or HI-8585. The HI-8784 and HI-8785 combine logic and line driver on one chip. The HI-8.

HI-8783 Datasheet (107.36 KB)

Preview of HI-8783 PDF

Datasheet Details

Part number:

HI-8783

Manufacturer:

Holt Integrated Circuits

File Size:

107.36 KB

Description:

(hi-8783 - hi-8785) 8 bit parallel data converted to 429 & 561 serial data out.

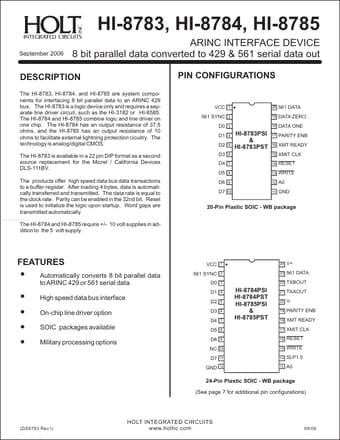

HI-8783, HI-8784, HI-8785 September 2006 ARINC INTERFACE DEVICE 8 bit parallel data converted to 429 & 561 serial data out PIN CONFIGURATIONS DESCRI.
