HI-8784 Datasheet, Out, Holt Integrated Circuits

HI-8784 Features

  • Out l l l l l VCC 561 SYNC D0 D1 D2 D3 D4 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 V+ 561 DATA TXBOUT TXAOUT VPARITY ENB XMT READY XMIT CLK RESET WRITE SLP1.5 A0 Automatically converts 8 bi

PDF File Details

Part number:

HI-8784

Manufacturer:

Holt Integrated Circuits

File Size:

107.36kb

Download:

📄 Datasheet

Description:

(hi-8783 - hi-8785) 8 bit parallel data converted to 429 & 561 serial data out. The HI-8783, HI-8784, and HI-8785 are system components for interfacing 8 bit parallel data to an ARINC 429 bus. The HI-8783 is a log

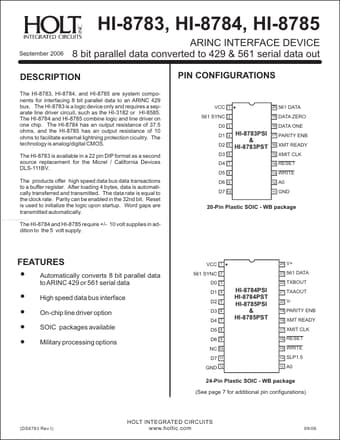

Datasheet Preview: HI-8784 📥 Download PDF (107.36kb)
Page 2 of HI-8784 Page 3 of HI-8784

HI-8784 Application

  • Applications where external series resistance is needed, typically for lightning protection devices. A0 1 0 0 0 Byte Byte 1 Byte 2 Byte 3 Byte 4
