HI-8787, (HI-8787 / HI-8788) 16-BIT PARALLEL DATA CONVERTED 429&561 SERIAL DATA OUT

HI-8787, HI-8788 January 2001 .
The HI-8787 and HI-8788 are system components for interfacing 16 bit parallel data to an ARINC 429 bus.

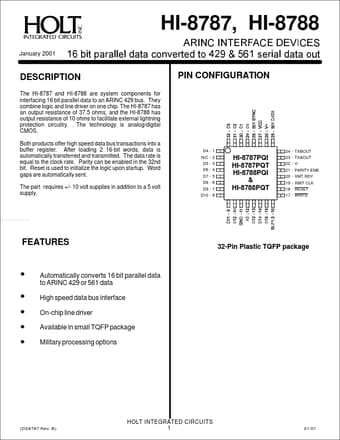

datasheet Preview Page 1 from Datasheet4u.com

HI-8787_HoltIntegratedCircuits.pdf

HI-8787 Datasheet Preview — Preview of HI-8787 PDF

Datasheet Details

Part number:

HI-8787

Manufacturer:

Holt Integrated Circuits

File Size:

165.15 KB

Description:

(HI-8787 / HI-8788) 16-BIT PARALLEL DATA CONVERTED 429&561 SERIAL DATA OUT

Features

* 32-Pin Plastic TQFP package l Automatically converts 16 bit parallel data to ARINC 429 or 561 data High speed data bus interface On-chip line driver Available in small TQFP package Military processing options l l l l (DS8787 Rev. B) HOLT INTEGRATED CIRCUITS 1 01/01 HI-8787, HI-8788 PIN DESC

Applications

* where external series resistance is needed, typically for lightning protection devices. A0 1 0 Load Word 1 Word 2 Data Bus D0 - D15 D0 - D15 ARINC Bits ARINC 1 - ARINC 16 ARINC 17 - ARINC 32 Figure 2. Order of transmitted data HOLT INTEGRATED CIRCUITS 3 35 XMIT CLK 36 1 2 3 4 5 31 32
