HT23C256 Datasheet, Rom, Holtek Microelectronics

HT23C256 Features

  • Rom
  • Operating voltage 2.7V~5.5V
  • Low power consumption - Operation: 25mA max. (VCC=5V)
  • 32768´8-bit of mask ROM
  • Mask options: chip enable CE/CE/OE1/OE1

PDF File Details

Part number:

HT23C256

Manufacturer:

Holtek Microelectronics

File Size:

108.46kb

Download:

📄 Datasheet

Description:

Cmos 32k x 8-bit mask rom. The HT23C256 is a read-only memory with high performance CMOS storage device whose 256K of memory is arranged into 32768 words by 8 b

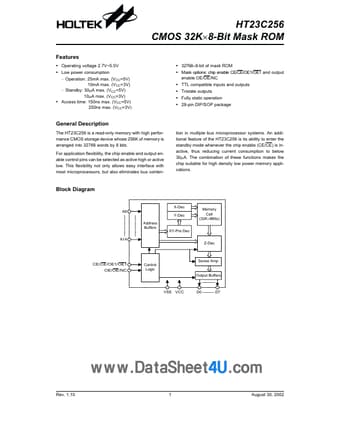

Datasheet Preview: HT23C256 📥 Download PDF (108.46kb)
Page 2 of HT23C256 Page 3 of HT23C256

HT23C256 Application

  • Applications Block Diagram X -D e c Y -D e c A d d re s s B u ffe rs A 1 4 A 0 M e m o ry C e ll ( 3 2 K ´ 8 B its ) X Y -P re D e c Z -D e c
