HT23C128 - CMOS 16Kx 8-Bit Mask ROM

Datasheet Summary

Description

The HT23C128 is a read-only memory with high performance CMOS storage device whose 128K of memory is arranged into 16384 words by 8 bits.

For application flexibility, the chip enable and output enable control pins can be selected as active high or active low.

Features

  • Operating voltage: 2.7V~5.5V Low power consumption.
  • Operation: 25mA Max. (V CC=5V) 10mA Max. (VCC=3V).
  • Standby: 30µA Max. (VCC=5V) 10µA Max. (VCC=3V) Access time:150ns Max. (VCC=5V) 250ns Max. (VCC=3V).
  • 16384×8 bits of mask ROM Mask options: chip enable CE/CE/OE2/OE2 and output enable OE/OE/NC & OE1/ OE1/NC TTL compatible inputs and outputs Tristate outputs Fully static operation Packag.

📥 Download Datasheet

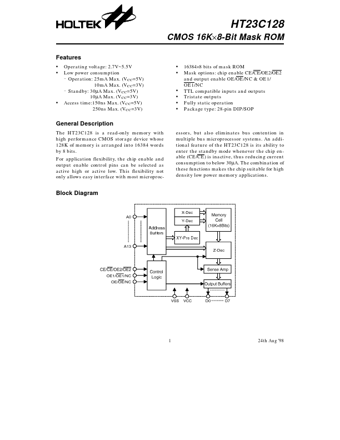

Datasheet preview – HT23C128
