HT23B60

60x11 Pixel Data Bank 8-Bit Mask MCU

Holtek Semiconductor

HT23B60 Features

* Operating voltage range: 2.4V~5.5V

* Program ROM: 32K´16 bits

* Data RAM: 2.3K´8 bits

* 16-bit table read instructions

* Eight-level subroutine nesting

* Timer - Two 16-bit programmable timer counters - Real time clock (RTC) - Watchdog Timer (WDT)

* Four operating modes

HT23B60 General Description

HT23B60 is an 8-bit CMOS microcontroller with various functionalities in a compact package such as SRAM, ROM I/Os, interrupt controller, timer and LCD controller/driver. It¢s suitable for use as electrical data bank, LCD game, calendar and speech products. Block Diagram R E S P ro g ra m C o u n te.

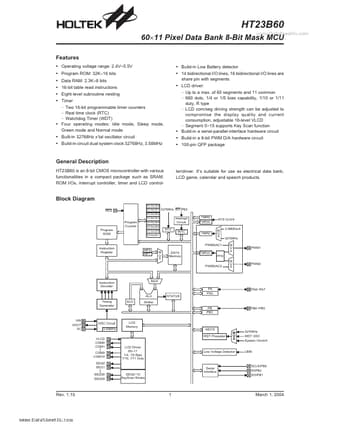

HT23B60 Datasheet (372.15 KB)

HT23B60 Datasheet Preview — Preview of HT23B60 PDF

Datasheet Details

Part number:

HT23B60

Manufacturer:

Holtek Semiconductor

File Size:

372.15 KB

Description:

60x11 pixel data bank 8-bit mask mcu.
