HT24LC02

1K/2K 2-Wire CMOS Serial EEPROM

HT24LC02 Features

* Operating voltage: 2.4V~5.5V Low power consumption

* Operation: 5mA max.

* Standby: 5µA max. Internal organization

* 1K (HT24LC01):128×8

* 2K (HT24LC02): 256×8 2-wire serial interface Write cycle time: 5ms

HT24LC02 General Description

The HT24LC01/02 is a 1K/2K-bit serial read/write non-volatile memory device using the CMOS floating gate process. Its 1024/2048 bits of memory are organized into 128/256 words and each word is 8 bits. The device is optimized for use in many industrial and commercial applications where low power and .

HT24LC02 Datasheet (248.30 KB)

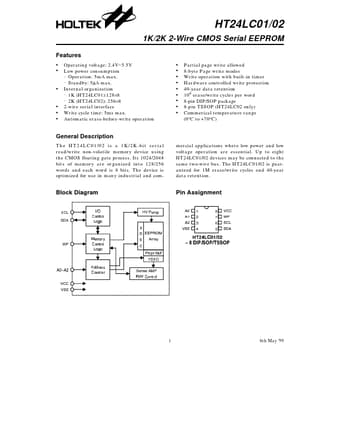

Preview of HT24LC02 PDF

Datasheet Details

Part number:

HT24LC02

Manufacturer:

Holtek Semiconductor Inc

File Size:

248.30 KB

Description:

1k/2k 2-wire cmos serial eeprom.
