HT24LC32 - CMOS 32K 2-Wire Serial EEPROM

Product Overview

Holtek Semiconductor

📥 Download Datasheet

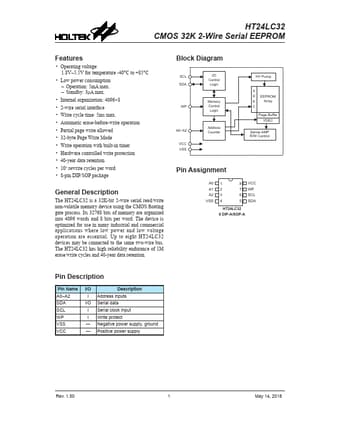

HT24LC32 CMOS 32K 2-Wire Serial EEPROM by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT24LC32

Datasheet Details

Part number	HT24LC32
Manufacturer	Holtek Semiconductor
File Size	305.95 KB
Description	CMOS 32K 2-Wire Serial EEPROM
Datasheet	HT24LC32 Datasheet
Additional preview pages of the HT24LC32 datasheet.

Product details

Description

The HT24LC32 is a 32K-bit 2-wire serial read/write non-volatile memory device using the CMOS floating gate process.

Features

Operating voltage: 1.8V~5.5V for temperature -40°C to +85°C.
Low power consumption.
Operation: 5mA max.
Standby: 3μA max.
Internal organization: 4096×8.
2-wire serial interface.
Write cycle time: 5ms max.
Automatic erase-before-write operation.
Partial page write allowed.
32-byte Page Write Mode.
Write operation with built-in timer.
Hardware controlled write.
