HT24LC16 - CMOS 16K 2-Wire Serial EEPROM

Product Overview

Holtek Semiconductor Inc

📥 Download Datasheet

HT24LC16 CMOS 16K 2-Wire Serial EEPROM by Holtek Semiconductor Inc - Datasheet Preview — Datasheet preview – HT24LC16

Datasheet Details

Part number	HT24LC16
Manufacturer	Holtek Semiconductor Inc
File Size	171.69 KB
Description	CMOS 16K 2-Wire Serial EEPROM
Datasheet	HT24LC16 Datasheet

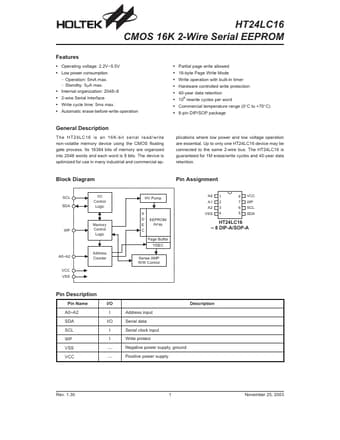

Additional preview pages of the HT24LC16 datasheet.

Product details

Description

The HT24LC16 is an 16K-bit serial read/write non-volatile memory device using the CMOS floating gate process.

Features

Operating voltage: 2.2V~5.5V.
Low power consumption - Operation: 5mA max. - Standby: 5mA max.
Internal organization: 2048´8.
2-wire Serial Interface.
Write cycle time: 5ms max.
Automatic erase-before-write operation.
Partial page write allowed.
16-byte Page Write Mode.
Write operation with built-in timer.
Hardware controlled write protection.
40-year data retention.
106 rewrite cycles per word.
Commercial temperature range (0°C.
