HT24LC08

CMOS 8K 2-Wire Serial EEPROM

HT24LC08 Features

* Operating voltage: 2.2V~5.5V

* Low power consumption - Operation: 5mA max. - Standby: 5mA max.

* Internal organization: 1024´8

* 2-wire Serial Interface

* Write cycle time: 5ms max.

* Automatic erase-before-write operation

* Partial page write allowed

* 16-byte Page

HT24LC08 General Description

The HT24LC08 is an 8K-bit serial read/write non-volatile memory device using the CMOS floating gate process. Its 8192 bits of memory are organized into 1024 words and each word is 8 bits. The device is optimized for use in many industrial and commercial applications where low power and low voltage o.

HT24LC08 Datasheet (160.33 KB)

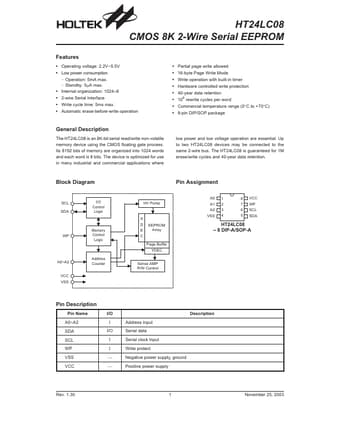

Preview of HT24LC08 PDF

Datasheet Details

Part number:

HT24LC08

Manufacturer:

Holtek Semiconductor Inc

File Size:

160.33 KB

Description:

Cmos 8k 2-wire serial eeprom.
